Product Category:Touch-Screen Noodle packing Machine

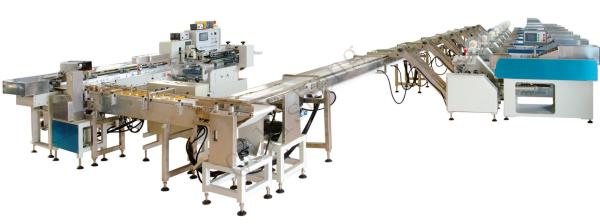

Product name:Touch-Screen Full-Automatic Noodle Packing machine
Item No. BJWD-CLKZQZD-100
Contains:
1 Packing machine:one set
2 Conveyor line:one set
3 Mixing device:one set
4 Heaping device:one set
5 Accelerating device:one set
6 Blank conveyor line:can be adjusted
7 Hoist ebgine: 4-12 sets, can be adjusted
8 Bundling line:4-12 sets, can be adjuxted
9 Weighing line；4-12 sets ,can be adjusted
Application:
Automatically finish the process of weighting, outputting, filling and sealed packing of the Spaghetti,pasta and other noodle
Technical Parameters:
Object |
Noodle, Spaghetti |
Length of the noodle |
180-260mm |
Thickness of the noodle |
0.6~1.4mm |
Width of the noodle |
0.8~3.0mm |
Packing rate |
30~45 bags/min |
Weight range |
300-1000g/bag |
Inputting method |
Digital input |
Variable setting |
0.1g |
Exact tolerance |
50-150g ,±2.0g-96%
200-300g,±3.0g-96% |
Size |
15000*4600*1750mm |
Voltage |
AC220v/50-60HZ/13KW |
Advantage:
I.Our packing machine use high-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate.Machine speed is controlled by inverter and can work synchronized production with other system.With anti-theft device.
II.Adpoted latest technology and massify design.Long operating life
III.Weighting machine use Chinese characters supporting touch screen, PLC, which make the packing speed faster and more accurate.It is the perfect substitute products of the traditional packing machine
IV.Spare the manpower, Improve productivity:Daily outputting 30t/5 person
V.Saving material resource.
VI.Reduce the chance of the long-term contact of human body or still can be opposite through food healthy generation harm.
