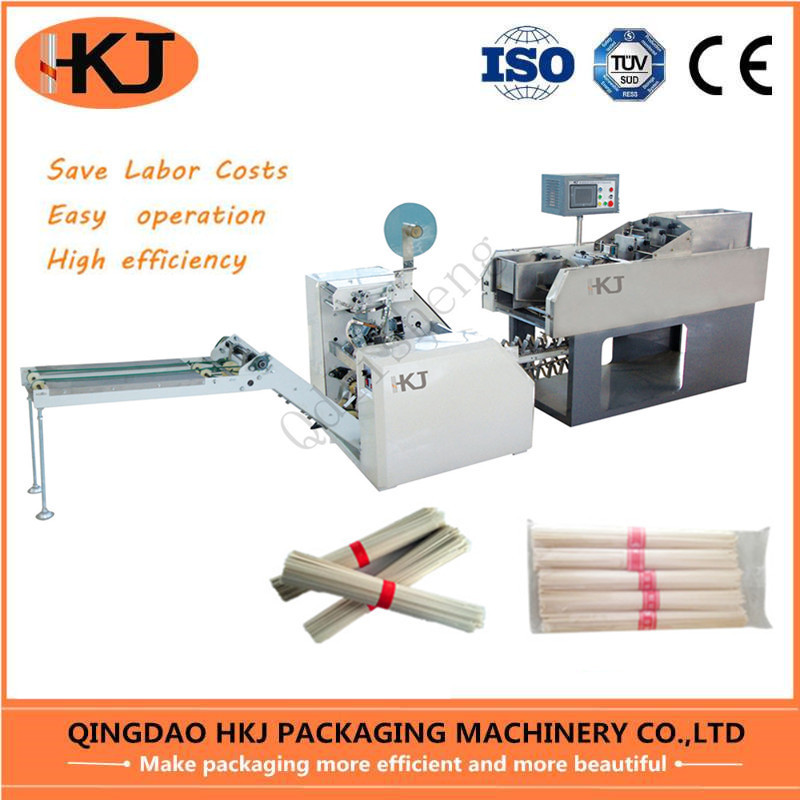

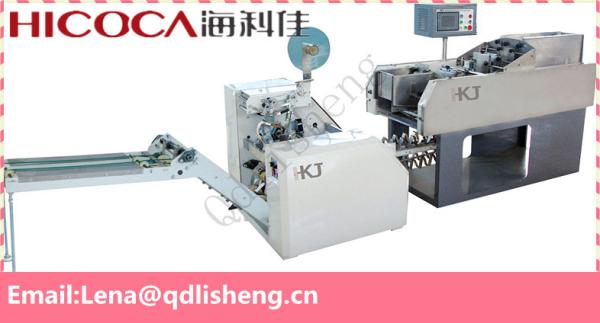

Automatic Spaghetti Noodles Weight,Single-slat Bundling packing Machine
Contains
1 Weighting machine:one set
2 Single-slat bundling machine:one set
3 Lifting machine:one set
Usage:

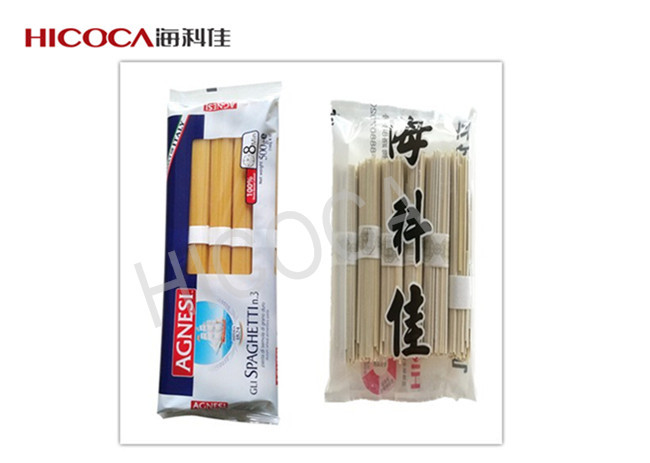

Our noodle packing mahcine can automatically finish the process of weighting, outputting, filling and single-slat packing of noodles and spaghetti
Advantage:
I. Our noodle packing machine use high-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate. Machine speed is controlled by inverter and can work synchronized production with other system. with anti-theft device.
II. Adpoted latest technology and massify design. Long operating life
III. Weighting machine use Chinese characters supporting touch screen, PLC, which make the packing speed faster and more accurate. It is the perfect substitute products of the traditional packing machine
IV. Spare the manpower, Improve productivity: Daily outputting 30t/5 person
V. Saving material resource.
VI. Reduce the chance of the long-term contact of human body or still can be opposite through food healthy generation harm.
Technical specification:
| Work object | noodle,spegahtti, pasta |
| Noodle length | 180-260mm ±5.0mm |
| Noodle thickness | 0.6mm-1.4mm |
| Noodle width | 0.8mm-3.0mm |
| Diameter of the roll | ∮1500-30mm |
| Dimensions of the paper roll | 12mm-24mm |
| Packing rate | ≦28 rolls/min |
| Weight Range | 40g-150g |
| Inputting method | Number input |
| Variable setting | 0.1g |
| Exact Value | 200-500g,±2.0g-96% 500-1000g,±3.0g-96% |
| Equipment size | 3850*1000*1350mm |
| Power | AC220V/50HZ/750W |

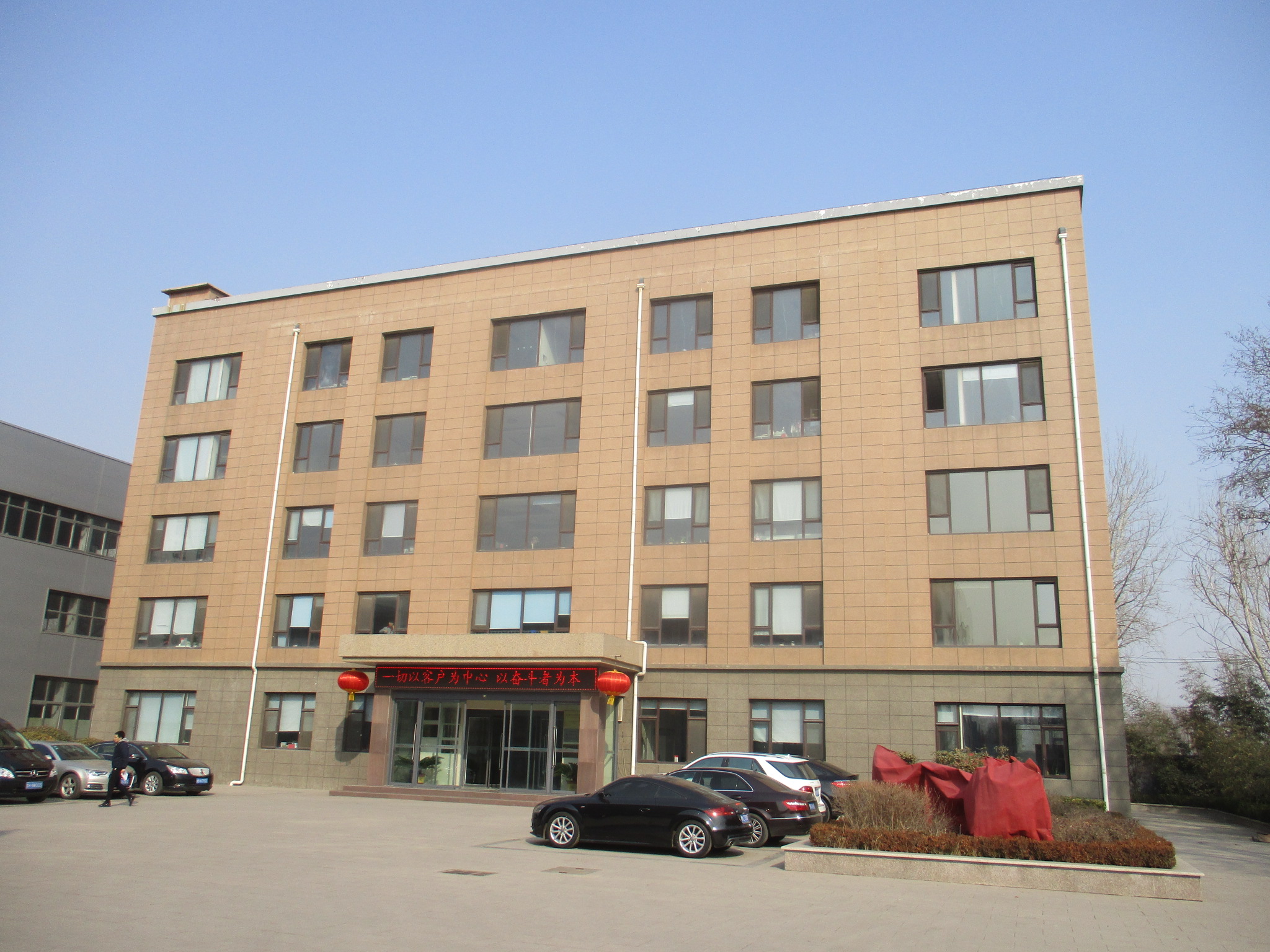

Our Factory

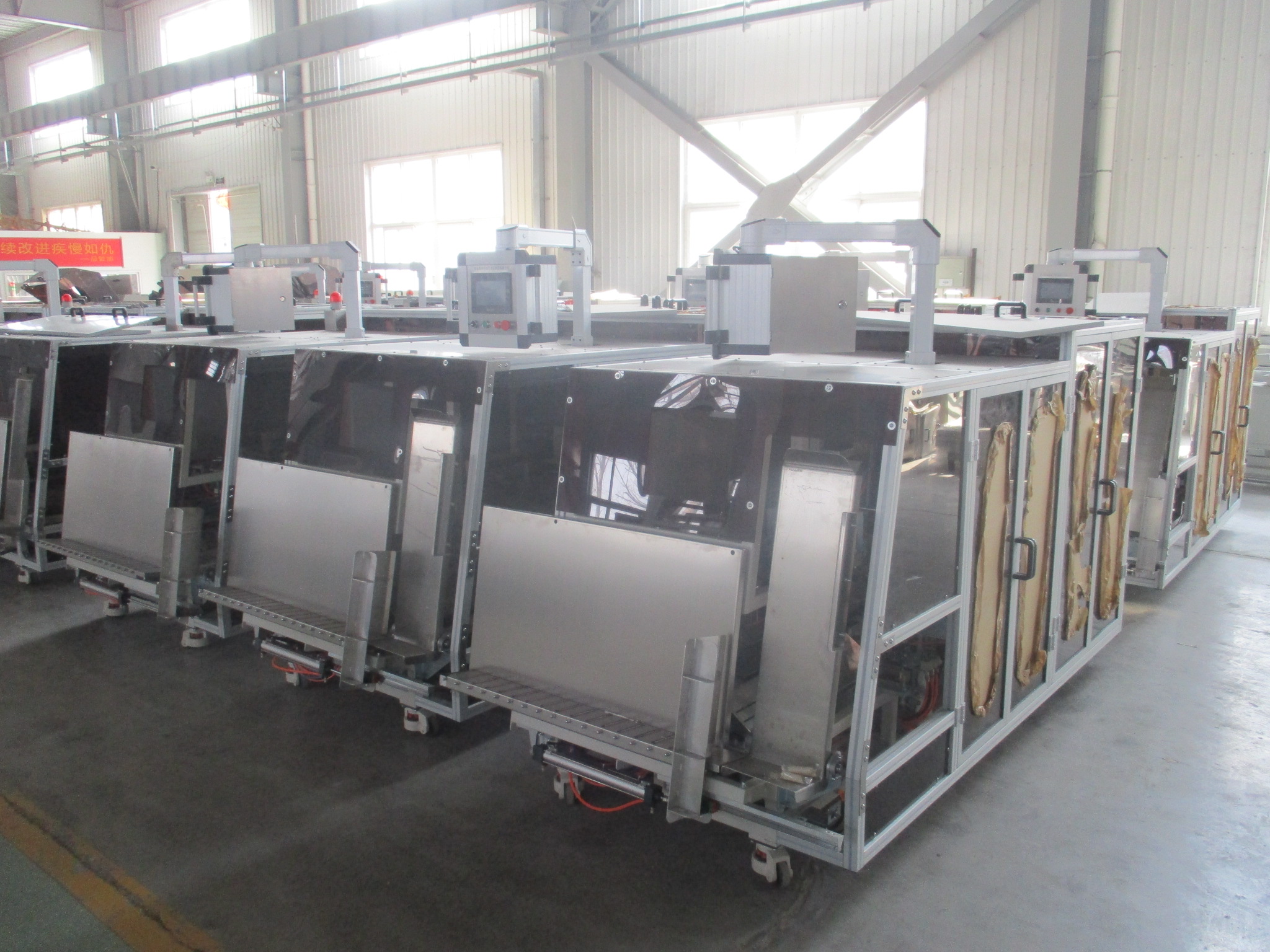

Production Line
450+ Workers,20000M2 Workshop, 15 Years Experience
